Maserati Shamal



This vehicle had been sitting in a garage for about five years, and had not run for this period of time. The vehicle was brought to me on a low loader and installed in the workshop prior to the rebuild. A great deal of care was needed with this project, addressing a multitude of problems both electrical and mechanical.



The photo’s show how the project progressed with some text explaining the various stages of the build and problems encountered.

Screenshot 2020-11-14 at 10.41.20.png

Here is the car as it appeared when it arrived. A considerable amount of corrosion was evident on a lot of the alloy parts and paintwork.

Screenshot 2020-11-14 at 10.41.13.png

So the engine is started to be taken apart. The cam belt and tensioner pulley are to be changed along with the water pump.

Screenshot 2020-11-14 at 10.41.26.png

The engine will be artificially primed with oil before the internals are moved, after the cam belts have been fitted etc.

Some of the photo’s were taken for reference purposes, but it gives a good flavour of the level of deterioration of the vehicle.

Cam covers removed which will be shot blasted and stove enamelled.

The covers were painted in a crackle finished originally, but is in poor condition.

All the intake castings removed, along with the cam covers.

Cam belt cover removed, here you can see some of the alloy corrosion.

The rear brake discs were not beyond redemption, but will be stove enamelled gold. The front discs will be renewed.

The vehicle supported on stands, wheels removed and fluids drained.

Screenshot 2020-11-14 at 10.42.17.png

Radiator removed along with the pipework.

Front brake discs and calipers are unserviceable, calipers are seized and will need to be replaced with new items.

Screenshot 2020-11-14 at 10.42.28.png

The engine has been chemically cleaned removing all corrosion.

Screenshot 2020-11-14 at 10.42.35.png

One scrap exhaust pipe!!

Screenshot 2020-11-14 at 10.42.47.png

Broken vacuum take off’s are £40 each, so I will machine some new ones on the lathe.

Screenshot 2020-11-14 at 10.42.41.png

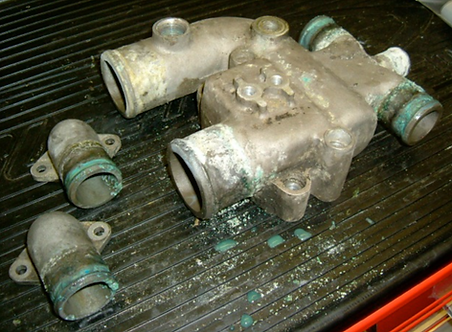

All the alloy castings are to be vapour blasted before refitted to the engine.

Cam belt and tensioner removed, water pump to take off as well.

Screenshot 2020-11-14 at 10.42.59.png

Old and new water pumps, the old pump’s bearing had failed.

Screenshot 2020-11-14 at 10.43.05.png

New water pump fitted and cam belt partially installed.

Screenshot 2020-11-14 at 10.43.11.png

Thermostat casting fresh from the blasters, assembled, ready for refitting to the engine.

Screenshot 2020-11-14 at 10.43.18.png

Cam covers being drilled and tapped M5 to accept bolts to secure splash guards. They were originally riveted, but were ground off prior to shot blasting.

Screenshot 2020-11-14 at 10.43.25.png

Covers complete, new bolts Loctited in place.

Screenshot 2020-11-14 at 10.43.32.png

Both am covers finished and ready to be installed. They look stunning.

Screenshot 2020-11-14 at 10.43.38.png

New discs, caliper, pads and braided hoses. The discs have been specially made and grooved. They have then been stove enamelled gold. The calper carriers have also been shot blasted and painted black.

New tyres fitted the the wheels. Starting to look the part.

Screenshot 2020-11-14 at 10.43.49.png

Cams and head cleaned, cam lube applied prior to covers being refitted.

Screenshot 2020-11-14 at 10.43.56.png

Cam covers fitted with new stainless fasteners. In the background you can see the plenum chamber with freshly replated fuel rails.

Coming together now, plenum to go on next.

Plenum fitted along with injectors and fuel rails.

Machining some new vacuum take offs, four off required.

The engine finished apart from the radiator assembly.

There you go! Much better than the originals.
